训练一个玩马里奥的强化学习智能体

# Initialize Super Mario environment (in v0.26 change render mode to 'human' to see results on the screen)
if gym.__version__ < '0.26':
    env = gym_super_mario_bros.make("SuperMarioBros-1-1-v0", new_step_api=True)
else:
    env = gym_super_mario_bros.make("SuperMarioBros-1-1-v0", render_mode='rgb', apply_api_compatibility=True)

# Limit the action-space to
#   0. walk right
#   1. jump right
env = JoypadSpace(env, [["right"], ["right", "A"]])

env.reset()
next_state, reward, done, trunc, info = env.step(action=0)
print(f"{next_state.shape},\n{reward},\n{done},\n{info}")

/usr/local/lib/python3.10/dist-packages/gym/envs/registration.py:555: UserWarning:

WARN: The environment SuperMarioBros-1-1-v0 is out of date. You should consider upgrading to version `v3`.

/usr/local/lib/python3.10/dist-packages/gym/envs/registration.py:627: UserWarning:

WARN: The environment creator metadata doesn't include `render_modes`, contains: ['render.modes', 'video.frames_per_second']

/usr/local/lib/python3.10/dist-packages/gym/utils/passive_env_checker.py:233: DeprecationWarning:

`np.bool8` is a deprecated alias for `np.bool_`.  (Deprecated NumPy 1.24)

(240, 256, 3),
 0.0,
 False,
 {'coins': 0, 'flag_get': False, 'life': 2, 'score': 0, 'stage': 1, 'status': 'small', 'time': 400, 'world': 1, 'x_pos': 40, 'y_pos': 79}

classSkipFrame(gym.Wrapper):
    def__init__(self, env, skip):
"""Return only every `skip`-th frame"""
        super().__init__(env)
        self._skip = skip

    defstep(self, action):
"""Repeat action, and sum reward"""
        total_reward = 0.0
        for i in range(self._skip):
            # Accumulate reward and repeat the same action
            obs, reward, done, trunk, info = self.env.step(action)
            total_reward += reward
            if done:
                break
        return obs, total_reward, done, trunk, info


classGrayScaleObservation(gym.ObservationWrapper):
    def__init__(self, env):
        super().__init__(env)
        obs_shape = self.observation_space.shape[:2]
        self.observation_space = Box(low=0, high=255, shape=obs_shape, dtype=np.uint8)

    defpermute_orientation(self, observation):
        # permute [H, W, C] array to [C, H, W] tensor
        observation = np.transpose(observation, (2, 0, 1))
        observation = torch.tensor(observation.copy(), dtype=torch.float)
        return observation

    defobservation(self, observation):
        observation = self.permute_orientation(observation)
        transform = T.Grayscale()
        observation = transform(observation)
        return observation


classResizeObservation(gym.ObservationWrapper):
    def__init__(self, env, shape):
        super().__init__(env)
        if isinstance(shape, int):
            self.shape = (shape, shape)
        else:
            self.shape = tuple(shape)

        obs_shape = self.shape + self.observation_space.shape[2:]
        self.observation_space = Box(low=0, high=255, shape=obs_shape, dtype=np.uint8)

    defobservation(self, observation):
        transforms = T.Compose(
            [T.Resize(self.shape, antialias=True), T.Normalize(0, 255)]
        )
        observation = transforms(observation).squeeze(0)
        return observation


# Apply Wrappers to environment
env = SkipFrame(env, skip=4)
env = GrayScaleObservation(env)
env = ResizeObservation(env, shape=84)
if gym.__version__ < '0.26':
    env = FrameStack(env, num_stack=4, new_step_api=True)
else:
    env = FrameStack(env, num_stack=4)

classMario:
    def__init__(self, state_dim, action_dim, save_dir):
        self.state_dim = state_dim
        self.action_dim = action_dim
        self.save_dir = save_dir

        self.device = "cuda" if torch.cuda.is_available() else "cpu"

        # Mario's DNN to predict the most optimal action - we implement this in the Learn section
        self.net = MarioNet(self.state_dim, self.action_dim).float()
        self.net = self.net.to(device=self.device)

        self.exploration_rate = 1
        self.exploration_rate_decay = 0.99999975
        self.exploration_rate_min = 0.1
        self.curr_step = 0

        self.save_every = 5e5  # no. of experiences between saving Mario Net

    defact(self, state):
"""
    Given a state, choose an epsilon-greedy action and update value of step.

    Inputs:
    state(``LazyFrame``): A single observation of the current state, dimension is (state_dim)
    Outputs:
    ``action_idx`` (``int``): An integer representing which action Mario will perform
    """
        # EXPLORE
        if np.random.rand() < self.exploration_rate:
            action_idx = np.random.randint(self.action_dim)

        # EXPLOIT
        else:
            state = state[0].__array__() if isinstance(state, tuple) else state.__array__()
            state = torch.tensor(state, device=self.device).unsqueeze(0)
            action_values = self.net(state, model="online")
            action_idx = torch.argmax(action_values, axis=1).item()

        # decrease exploration_rate
        self.exploration_rate *= self.exploration_rate_decay
        self.exploration_rate = max(self.exploration_rate_min, self.exploration_rate)

        # increment step
        self.curr_step += 1
        return action_idx

classMario(Mario):  # subclassing for continuity
    def__init__(self, state_dim, action_dim, save_dir):
        super().__init__(state_dim, action_dim, save_dir)
        self.memory = TensorDictReplayBuffer(storage=LazyMemmapStorage(100000, device=torch.device("cpu")))
        self.batch_size = 32

    defcache(self, state, next_state, action, reward, done):
"""
        Store the experience to self.memory (replay buffer)

        Inputs:
        state (``LazyFrame``),
        next_state (``LazyFrame``),
        action (``int``),
        reward (``float``),
        done(``bool``))
        """
        deffirst_if_tuple(x):
            return x[0] if isinstance(x, tuple) else x
        state = first_if_tuple(state).__array__()
        next_state = first_if_tuple(next_state).__array__()

        state = torch.tensor(state)
        next_state = torch.tensor(next_state)
        action = torch.tensor([action])
        reward = torch.tensor([reward])
        done = torch.tensor([done])

        # self.memory.append((state, next_state, action, reward, done,))
        self.memory.add(TensorDict({"state": state, "next_state": next_state, "action": action, "reward": reward, "done": done}, batch_size=[]))

    defrecall(self):
"""
        Retrieve a batch of experiences from memory
        """
        batch = self.memory.sample(self.batch_size).to(self.device)
        state, next_state, action, reward, done = (batch.get(key) for key in ("state", "next_state", "action", "reward", "done"))
        return state, next_state, action.squeeze(), reward.squeeze(), done.squeeze()

\[{TD}_e = Q_{online}^*(s,a)\]

\[a' = argmax_{a} Q_{online}(s', a)\]

\[{TD}_t = r + \gamma Q_{target}^*(s',a')\]

\[\theta_{online} \leftarrow \theta_{online} + \alpha \nabla(TD_e - TD_t)\]

\[\theta_{target} \leftarrow \theta_{online}\]

importnumpyasnp
importtime,datetime
importmatplotlib.pyplotasplt


classMetricLogger:
    def__init__(self, save_dir):
        self.save_log = save_dir / "log"
        with open(self.save_log, "w") as f:
            f.write(
                f"{'Episode':>8}{'Step':>8}{'Epsilon':>10}{'MeanReward':>15}"
                f"{'MeanLength':>15}{'MeanLoss':>15}{'MeanQValue':>15}"
                f"{'TimeDelta':>15}{'Time':>20}\n"
            )
        self.ep_rewards_plot = save_dir / "reward_plot.jpg"
        self.ep_lengths_plot = save_dir / "length_plot.jpg"
        self.ep_avg_losses_plot = save_dir / "loss_plot.jpg"
        self.ep_avg_qs_plot = save_dir / "q_plot.jpg"

        # History metrics
        self.ep_rewards = []
        self.ep_lengths = []
        self.ep_avg_losses = []
        self.ep_avg_qs = []

        # Moving averages, added for every call to record()
        self.moving_avg_ep_rewards = []
        self.moving_avg_ep_lengths = []
        self.moving_avg_ep_avg_losses = []
        self.moving_avg_ep_avg_qs = []

        # Current episode metric
        self.init_episode()

        # Timing
        self.record_time = time.time()

    deflog_step(self, reward, loss, q):
        self.curr_ep_reward += reward
        self.curr_ep_length += 1
        if loss:
            self.curr_ep_loss += loss
            self.curr_ep_q += q
            self.curr_ep_loss_length += 1

    deflog_episode(self):
        "Mark end of episode"
        self.ep_rewards.append(self.curr_ep_reward)
        self.ep_lengths.append(self.curr_ep_length)
        if self.curr_ep_loss_length == 0:
            ep_avg_loss = 0
            ep_avg_q = 0
        else:
            ep_avg_loss = np.round(self.curr_ep_loss / self.curr_ep_loss_length, 5)
            ep_avg_q = np.round(self.curr_ep_q / self.curr_ep_loss_length, 5)
        self.ep_avg_losses.append(ep_avg_loss)
        self.ep_avg_qs.append(ep_avg_q)

        self.init_episode()

    definit_episode(self):
        self.curr_ep_reward = 0.0
        self.curr_ep_length = 0
        self.curr_ep_loss = 0.0
        self.curr_ep_q = 0.0
        self.curr_ep_loss_length = 0

    defrecord(self, episode, epsilon, step):
        mean_ep_reward = np.round(np.mean(self.ep_rewards[-100:]), 3)
        mean_ep_length = np.round(np.mean(self.ep_lengths[-100:]), 3)
        mean_ep_loss = np.round(np.mean(self.ep_avg_losses[-100:]), 3)
        mean_ep_q = np.round(np.mean(self.ep_avg_qs[-100:]), 3)
        self.moving_avg_ep_rewards.append(mean_ep_reward)
        self.moving_avg_ep_lengths.append(mean_ep_length)
        self.moving_avg_ep_avg_losses.append(mean_ep_loss)
        self.moving_avg_ep_avg_qs.append(mean_ep_q)

        last_record_time = self.record_time
        self.record_time = time.time()
        time_since_last_record = np.round(self.record_time - last_record_time, 3)

        print(
            f"Episode {episode} - "
            f"Step {step} - "
            f"Epsilon {epsilon} - "
            f"Mean Reward {mean_ep_reward} - "
            f"Mean Length {mean_ep_length} - "
            f"Mean Loss {mean_ep_loss} - "
            f"Mean Q Value {mean_ep_q} - "
            f"Time Delta {time_since_last_record} - "
            f"Time {datetime.datetime.now().strftime('%Y-%m-%dT%H:%M:%S')}"
        )

        with open(self.save_log, "a") as f:
            f.write(
                f"{episode:8d}{step:8d}{epsilon:10.3f}"
                f"{mean_ep_reward:15.3f}{mean_ep_length:15.3f}{mean_ep_loss:15.3f}{mean_ep_q:15.3f}"
                f"{time_since_last_record:15.3f}"
                f"{datetime.datetime.now().strftime('%Y-%m-%dT%H:%M:%S'):>20}\n"
            )

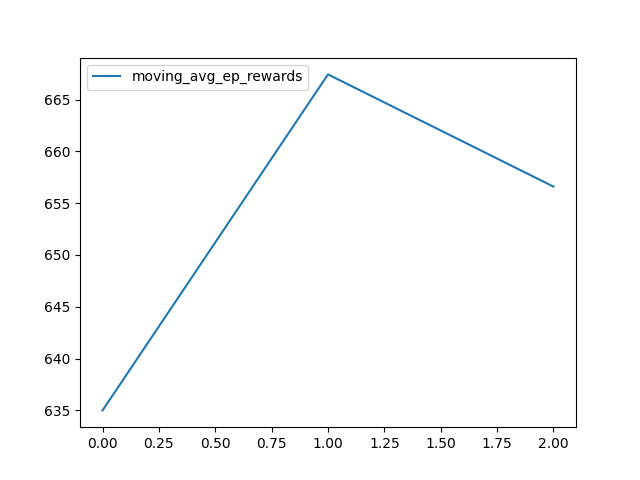

        for metric in ["ep_lengths", "ep_avg_losses", "ep_avg_qs", "ep_rewards"]:
            plt.clf()
            plt.plot(getattr(self, f"moving_avg_{metric}"), label=f"moving_avg_{metric}")
            plt.legend()
            plt.savefig(getattr(self, f"{metric}_plot"))
